Volta Pendant
49330 Volta Pendant
49330 Volta Pendant Angle 1 View
49330 Volta Pendant Angle 2 View
49330 Volta Pendant Side View
49330 Volta Pendant Back View
49330 Volta Pendant Back Angle View
49330 Volta Pendant Detail View
49330 Volta Pendant
49330 Volta Pendant

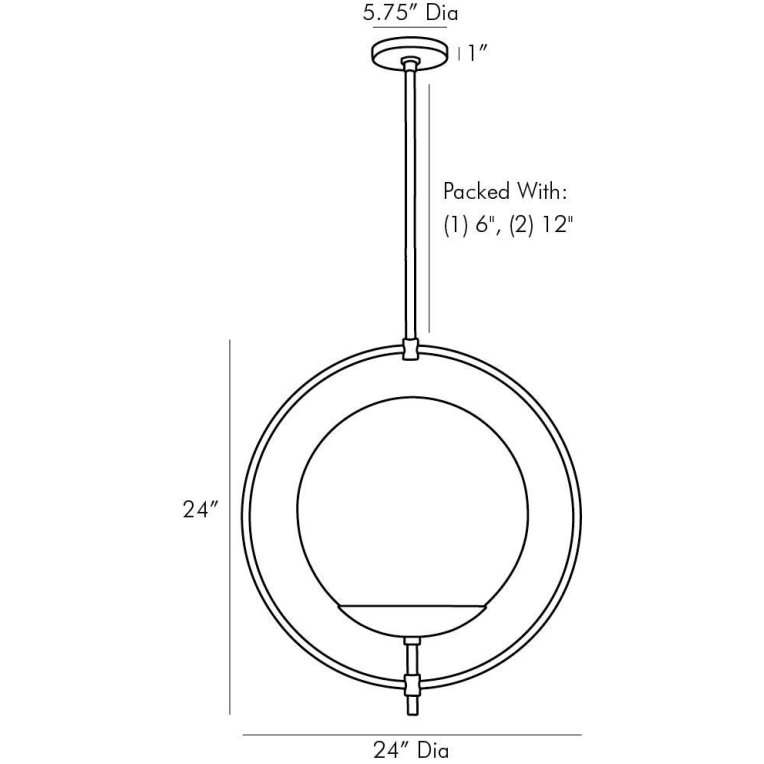

49330 Volta Pendant Product Line Drawing

#ARTERIORSHOME — INSPIRED BY YOU
 Upload  Gallery  #arteriorshome

Volta Pendant

49330

In Stock
  • Pale Brass
Contract Suitable As Is Damp Rated

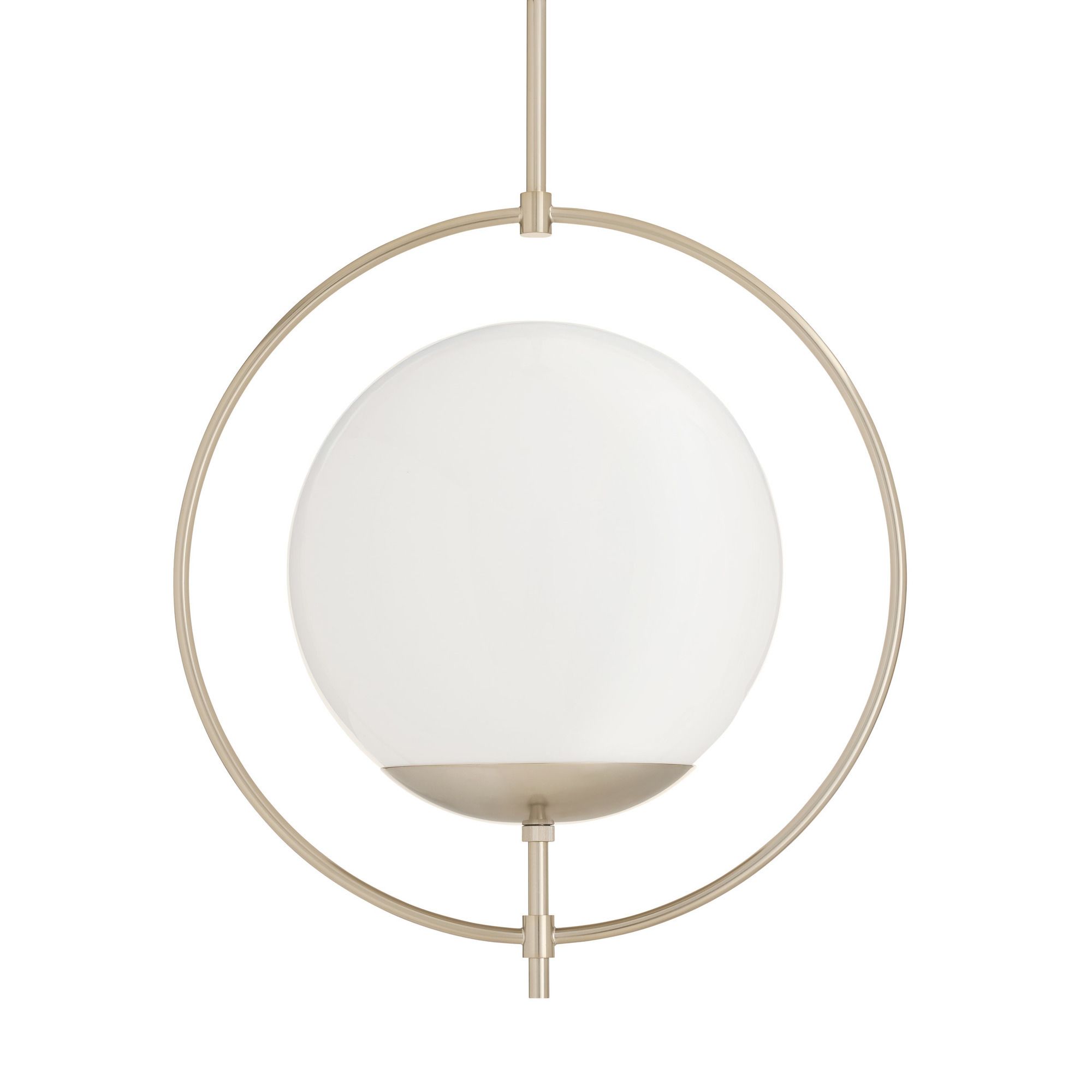

The depths of spatial design are defined with the Volta Pendant. An opal glass globe is suspended by a steel pipe finished in pale brass that encompasses it in free-form fashion. The simple geometric silhouette of the circumambient façade creates a visual of a floating orb, delivering a dimensional dynamic to a space. Damp-rated, although limited covered outdoor conditions may affect finish. Additional pipe available (PIPE-176).

MSRP: $1,850

Technical Documents

Tear Sheet Download
Spec Sheet Download
CAD Drawing Download
Product Images Download

APPEARANCE & DIMENSIONS

Color: Gold, White
Material: Glass, Steel
Primary Finish: Pale Brass
Finish: Pale Brass, Opal
Minimum Hanging Height: 26in
Max Hanging Height: 56in
Pendant: H: 24in, W: 22in, D: 15in
Canopy: H: 1in, Dia: 5.75in
Overall: H: 26in, W: 15in, D: 22in

COMMERCIAL

Commercial: Suitable As Is

COMPLIANCY

Compliancy: CB, RoHS, UL/ETL

INFO

Link: Welded
Pipe Chain: (1) 6", (2) 12"
Replacement Part 1: PIPE-182
Replacement Part 1 Dim: (1) 4", (1) 6", and (1) 12"
Replacement Part 2: CANOPY-330
Replacement Part 2 Dim: 1" x 5.75" Dia

WIRING

Max Wattage: 60
Voltage: 110-120 V
Rating: Damp
Rohs: Yes
Socket: 1, Type A- E26 Other
Cord: Black/White, SVT, L: 10 FT

CERTIFICATION

CERT Approved: Canada, European Union, Mexico, Middle East, United Kingdom, United States

SHIPPING

Gross Weight 1 Outbound: 18lbs
Net Weight: 9.5lbs
Shipping box 1: H: 27in, L: 29in, W: 28in
